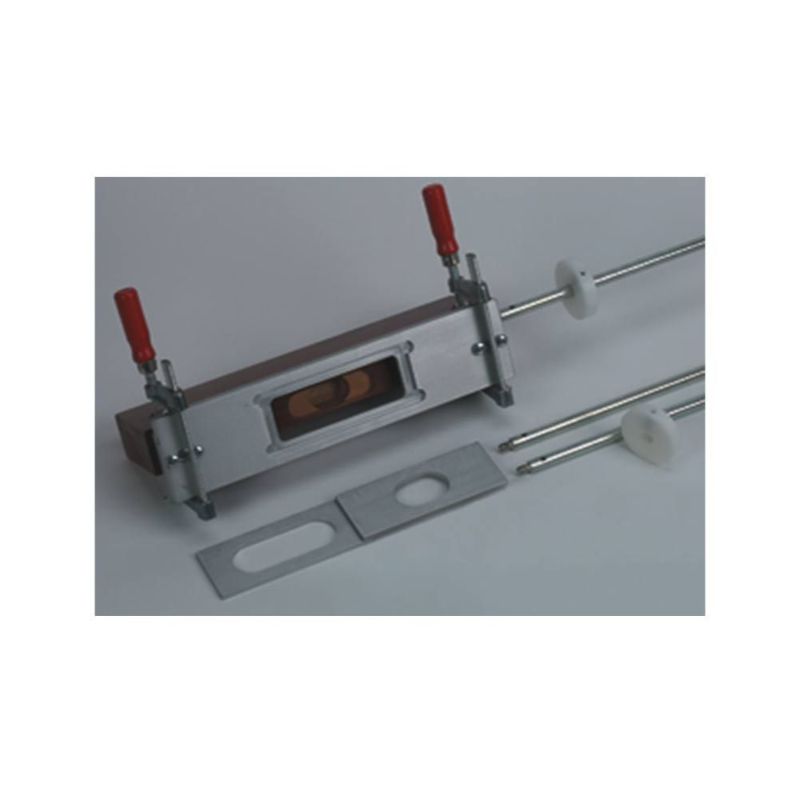

Carlisle Brass Fitting Jig for Ceam Hinges 1131-1230

Save 35%

Sale price£286.11 Regular price£440.16

Tax included Shipping calculated at checkout


Fitting Jig for the 1131 - 1230 Ceam 3D concealed hinge.

The drilling template, made of 5 mm thick aluminium plates, is composed by a central body and a double insert (sold separately from the body); it allows the implementation of the slots for all the invisible hinges. The strength of the materials guarantees precise slots executions with a manual pantograph (16 mm diam. cutter and 27 mm external ring provided for all manual pantographs). For each hinge model, two types of insertions, easily replaceable, are used: one (A) to execute: the stroke slot and the other (B) for the internal depth slot.

Please order the templates with the fitting jig below.

Unit of Sale: Each
